Before beginning your RZ1 installation, make sure your vehicle is compatible and that you have everything you need in hand.
Diagnostic Port Requirements
The RoadEazy RZ1 system is designed to work seamlessly with almost any vehicle, as it requires minimal compatibility criteria. The only requirement is that the vehicle has a diagnostic port—
- OBDII port for light-duty vehicles
- J1939 port for medium and heavy-duty vehicles.
These diagnostic ports are standard in most vehicles, ensuring that the RZ1 can be easily installed and operated without the need for additional modifications or special configurations.
RZ1 Main Package
The primary package includes the core components necessary to get your RZ1 system operational:
- RZ1 Vehicle Hub: The central unit responsible for collecting vehicle telematics data and managing connectivity between the system and the cloud.
- RZ1 Camera: A dual-lens dashcam offering both road-facing and cabin-facing views, ensuring comprehensive video monitoring for fleet management.
- Safety Screwdriver: A specialized tool provided for securing and adjusting the system during installation.
Installation Kit
For a complete and professional installation, the following accessories are available in the optional installation kit:
- Power Cable: Connects the RZ1 Vehicle Hub to the vehicle's diagnostic (OBDII) port, supplying power and enabling telematics data collection.

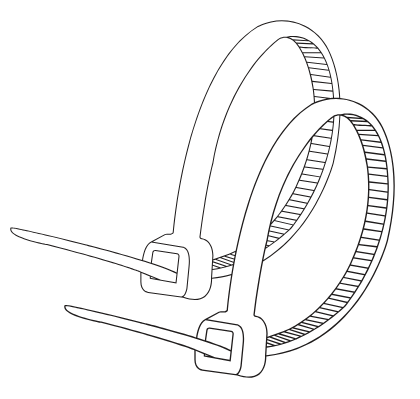

- ZIP Ties: Helps organize and secure cables, ensuring a neat and safe installation.
- Alcohol Wipe: Cleans the windshield surface to ensure optimal adhesion of the dashcam's 3M mounting pads.
- Cable Clips: Keeps cables firmly in place, preventing interference with the vehicle's operation or driver safety.
Warning
Do not use cables or connectors that were not purchased from RoadEazy. Using unauthorized components may impact device performance. If you need additional or replacement cables, please contact our support team before proceeding.
